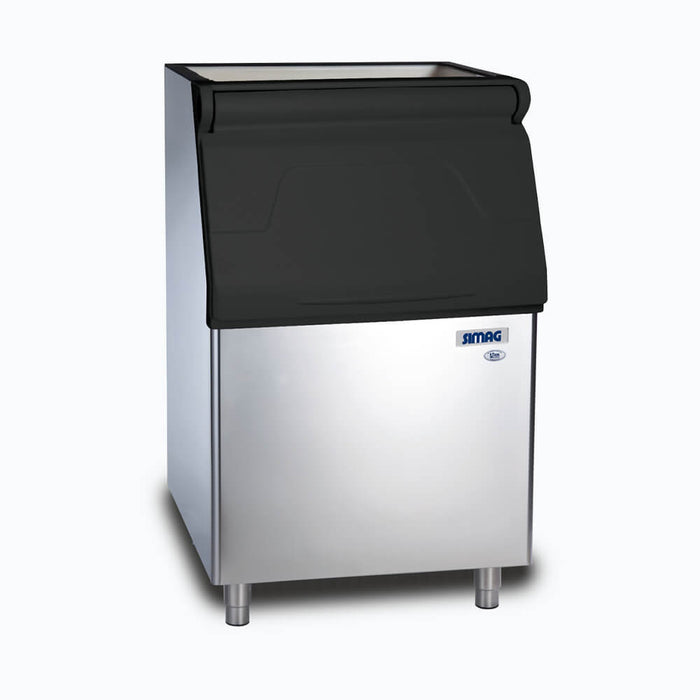

Bromic SB178 - Ice Machine Storage Bin, 178kg, 768mm

Bromic SB178 - Ice Machine Storage Bin, 178kg, 768mm

The Bromic SB178 is a 768mm-wide insulated storage bin that holds up to 178 kg of ice under a Bromic modular ice machine head. It works with all seven Bromic modular heads: the 760mm-wide IM0320HDM and IM0485HDM half dice heads sit on it directly, and the other five fit with an adaptor. At 1043mm high it is about the same height as the smaller SB129, so it gives you more storage without raising the overall height. The bin stores ice only; the head on top makes it.

Key features:

• Stores up to 178 kg of ice
• Direct fit for the IM0320HDM and IM0485HDM half dice heads
• Fits the IM0160HDM and IM0250HDM with the CBT30EMCD adaptor
• Fits the IM0200FM-NR, IM0300FM-NR and IM0400FM-NR flake heads with the CBT30EFSD adaptor
• Polyurethane insulation to slow melting
• Agion antimicrobial-treated materials
• Stainless steel inside and out

Specifications:

• Model: Bromic SB178
• Storage capacity: 178 kg of ice
• Dimensions: 768 W x 843 D x 1043 H mm (height excludes feet)
• Weight: 62 kg
• Insulation: polyurethane
• Construction: stainless steel interior and exterior
• Packed size for delivery: 818 W x 893 D x 1093 H mm, 67 kg

Good to know before you buy:

• Needs a head: the SB178 stores ice but does not make it. A compatible Bromic modular head sits on top.
• Adaptors: Bromic adaptors are not listed separately. If you are buying a head as well, choose the SB178 option on the head's product page and the right adaptor is included where needed. If you already own a head that needs an adaptor, ask us.
• Water / drain: the head on top needs a water supply and drain, connected by a licensed plumber. We supply the equipment only.
• Access: the packed bin is 818 x 893 x 1093 mm and 67 kg. It comes by tailgate truck to the front of your premises, so check your doorways.

Compare similar models:

• Bromic SB243: almost the same footprint, 225mm taller, holds 243 kg
• Bromic SB129: narrower 560mm bin, holds 129 kg
• Bromic SB406: 1235mm wide, holds 406 kg

Common questions:

SB178 or SB243?
They have almost the same footprint and suit the same heads. The SB243 holds 65 kg more ice but is 1268mm high instead of 1043mm, so the SB178 is the pick when ceiling height is limited.

How tall is it with a head on top?
About 1618mm with the IM0320HDM and 1843mm with the IM0485HDM, from Bromic's data, not counting the bin's feet. The other heads need an adaptor between head and bin, so ask us if you need an exact overall height.

Does 178 kg mean it makes 178 kg of ice a day?
No. That is how much the bin holds at once. Daily output depends on the head.

See all our ice machines.

Warranty: Bromic 5-year Extra Care warranty, covering parts and labour. Warranty repairs are carried out through Bromic's national service network.
