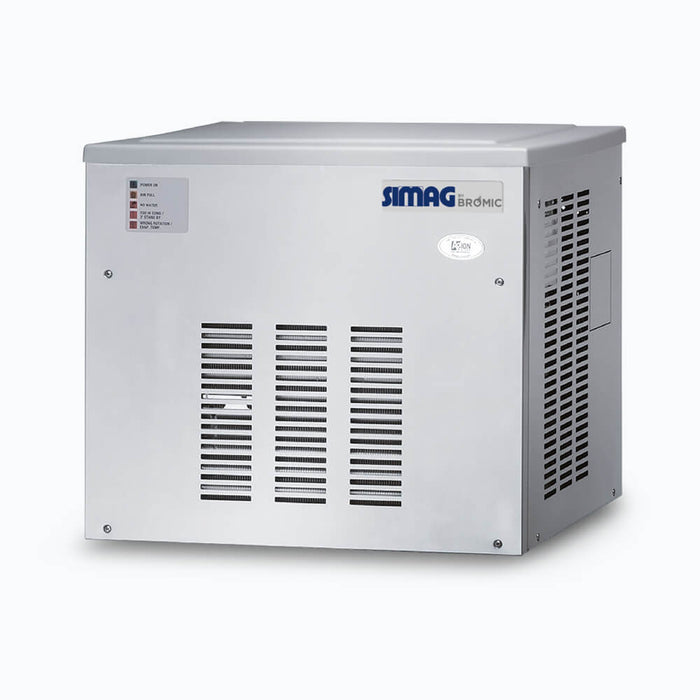

Bromic IM0200FM-NR - Modular Ice Machine, Flake, 200kg/24h, 564mm

Bromic IM0200FM-NR - Modular Ice Machine, Flake, 200kg/24h, 564mm

The Bromic IM0200FM-NR is a modular flake ice machine head rated at 200 kg of ice per 24 hours. Flake ice is soft and shapeless, so it chills and displays delicate produce and other perishables quickly without damaging them. As a modular head, it makes the ice and drops it into a separate storage bin underneath, so it needs a compatible bin to work. It is the smallest of Bromic's three flake heads and the only one that sits straight on the SB129 bin without an adaptor.

Key features:

• Shapeless flake ice that cools fast and is gentle on delicate produce
• Rated at 200 kg of ice per 24 hours
• Choose it as a head only, or with a matching Bromic storage bin (see options below)
• Fits the SB129 bin directly; the SB178 and SB243 bins fit with the CBT30EFSD adaptor
• Vented cooling system that Bromic says reduces the clearance needed around and above it
• Agion antimicrobial-treated materials
• PCB controller for simple settings and production monitoring
• Stainless steel inside and out, R290 natural refrigerant

Specifications:

• Model: Bromic IM0200FM-NR (modular head)
• Ice type: flake
• Ice production: 200 kg per 24 hours
• Ice storage: none in the head; it needs a separate storage bin
• Head dimensions: 564 W x 536 D x 531 H mm
• Head weight: 49 kg
• Maximum room temperature: 43°C
• Refrigerant: R290
• Refrigeration capacity: 700 W
• Power: 230V, 50Hz single phase, 3.2 A, 10 amp plug at the rear, bottom left
• Energy use: 15.2 kWh per 24 hours
• Water consumption: 7.4 litres per hour
• Head packed size: 630 W x 610 D x 680 H mm, 56 kg
• Option, head only (no bin): for buyers who already have a compatible bin
• Option, with SB129: holds 129 kg of ice, 560 W x 841 D x 1045 H mm, fits directly
• Option, with SB178 + CBT30EFSD adaptor: holds 178 kg, 768 W x 843 D x 1043 H mm
• Option, with SB243 + CBT30EFSD adaptor: holds 243 kg, 770 W x 873 D x 1268 H mm
• Bin heights exclude feet

Good to know before you buy:

• Storage bin: the head can't hold ice on its own. Pick "Ice machine head only" only if you already have a compatible bin. Otherwise choose a bin option: the SB129 fits directly, and the SB178 and SB243 options include the CBT30EFSD adaptor Bromic specifies. A bin's capacity is how much ice it stores at one time, which is different from the 200 kg the head can make in 24 hours.
• Height: head plus bin comes to about 1576mm on the SB129, 1574mm on the SB178 and 1799mm on the SB243, not counting the bin's feet or the adaptor. Check your ceiling height and doorways.
• Water / drain: it needs a cold water supply and a drain, connected by a licensed plumber. We supply the equipment only. Bromic also offers a water filtration kit; ask us.
• Power: the head plugs into a standard 10 amp outlet.

Compare similar models:

• Bromic IM0300FM-NR: flake head, 300 kg per 24 hours, adaptor needed for every bin
• Bromic IM0400FM-NR: flake head, 410 kg per 24 hours
• Bromic IM0160HDM: half dice head, 160 kg per 24 hours, same bin choices
• Bromic IM0250HDM: half dice head, 250 kg per 24 hours

Common questions:

Does it come with a storage bin?
Only if you choose a bin option. The head on its own makes ice but has nowhere to store it, so you need a compatible bin, either one you already own or one of the Bromic bins offered on this page.

Which bin should I choose?
It depends on how much ice you want on hand. The SB129 is the narrowest at 560mm and needs no adaptor. The SB178 and SB243 store more ice and come with the CBT30EFSD adaptor in those options.

Do you install it?
We supply the equipment only. A licensed plumber must connect the water supply and drain. The head then plugs into a 10 amp outlet.

See all our ice machines.

Warranty: Bromic 5-year Extra Care warranty, covering parts and labour. Warranty repairs are carried out through Bromic's national service network.
