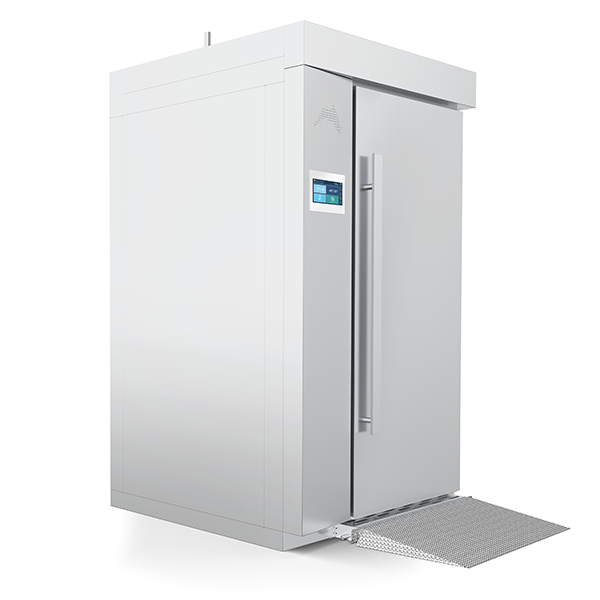

Polaris GC101 - 1 Trolley Remote Roll-In Blast Chiller Freezer 80kg

Polaris GC101 - 1 Trolley Remote Roll-In Blast Chiller Freezer 80kg

The Polaris GC101 is a walk-up blast chilling cell for central kitchens, caterers, hospitals and food producers that cook in volume. You wheel a full 1/1 GN trolley straight in, then blast chill or shock freeze up to 80 kg per cycle without unloading a single tray. It is the smallest of the GC range: one trolley, one door, and it runs from a separate remote condensing unit (GMR101), so the heat and noise of the refrigeration plant can sit away from the kitchen.

Key features:

• Takes one roll-in 1/1 GN or EN1 (600 x 400) trolley, trolley not included
• Blast chills 80 kg from +90°C to +3°C, or freezes 80 kg from +90°C to -18°C, with SOFT and HARD cycles
• Holds product at +3°C or -18°C once the cycle ends
• 7 inch full touch display and a heated 1-point core probe built into the door
• USB port for downloading HACCP data (temperatures, alarms and events) and transferring recipes
• 80 mm CFC and HCFC-free insulation, with a 60 mm reinforced, non-slip floor
• Evaporator mounted inside the cell and raised off the floor for easier cleaning
• Multi-point magnetic door lock and removable AISI 304 stainless steel internal bumpers
• Scotch-Brite satin finish exterior, made in Italy

Specifications:

• Model: Polaris GC101
• Capacity: 1 x 1/1 GN trolley
• Blast chilling: 80 kg, +90°C to +3°C
• Shock freezing: 80 kg, +90°C to -18°C
• Dimensions: 1300 W x 1250 D x 2100 H mm
• Internal cell size: 740 x 910 x 1820 mm
• Door opening: 740 x 1820 mm
• Weight: 450 kg
• Power: 6.65 kW, 400V three phase plus neutral
• Refrigerant: R452A, remote air-cooled condensing unit GMR101 (sold separately)
• Insulation: 80 mm, floor thickness 60 mm
• Origin: Italy
• Packed for delivery: 3.41 m³, 570 kg (supplied disassembled)

Good to know before you buy:

• What's not included: the remote condensing unit (GMR101), the access ramp (R-GCX01) and trolleys are all extras. Ask us to quote the complete package.
• Assembly and connection: the cell arrives disassembled and must be assembled on site. The refrigeration lines to the remote unit need a licensed refrigeration mechanic, and the three-phase power must be connected by a licensed electrician. We supply the equipment only.
• Hot climates: the standard GMR101 condensing unit is rated for outside temperatures up to 38°C. A tropicalised unit for up to 43°C is available on request.
• Access: at 570 kg packed it arrives by tailgate truck to the front of your premises, so plan for suitable lifting equipment and a clear path to the install area.

Compare similar models:

• Polaris GC201: two trolleys, 160 kg per cycle, 2300 mm deep
• Polaris GC301: three trolleys, 240 kg per cycle
• Polaris KC100C: self-contained roll-in model with the refrigeration unit on board, no remote condenser needed

Common questions:

Is the condensing unit included?
No. The GC101 is the insulated cell only. The matching GMR101 remote condensing unit, the ramp and trolleys are sold separately. Ask us for a full quote.

Is there a pass-through version?
Yes. Polaris lists a pass-through version (GC101P) as an option, so you can load from the cooking side and unload on the other. Ask us for details.

Do you install it?
We supply the equipment only. It must be assembled and connected by a licensed refrigeration mechanic and a licensed electrician in your area.

See all our blast chillers.

Warranty: 2 years parts and 2 years labour (24 months each) through Polaris's Australian distributor, Scots Ice. Exclusions apply.
