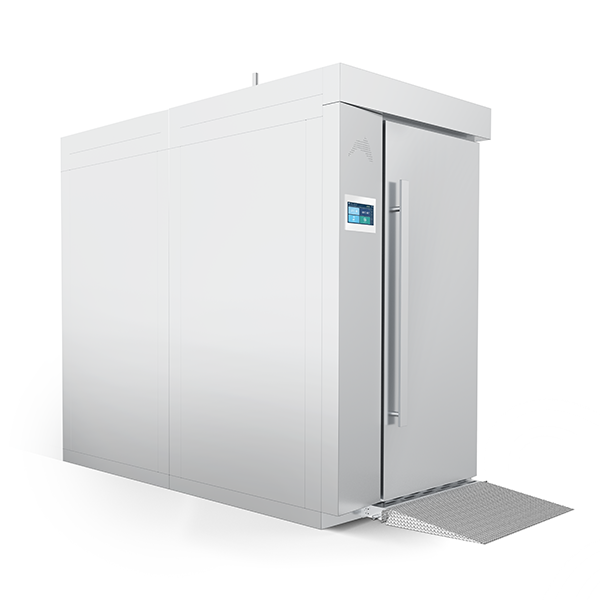

Polaris GC201 - 2 Trolley Remote Roll-In Blast Chiller Freezer 160kg

Polaris GC201 - 2 Trolley Remote Roll-In Blast Chiller Freezer 160kg

Built for cook-chill production at scale, the Polaris GC201 takes two full 1/1 GN trolleys, one behind the other, in one cell and brings up to 160 kg of cooked food down to +3°C, or freezes 160 kg to -18°C, in a single cycle. It suits central production kitchens, hospitals, aged care, airline and event caterers. Like the rest of the GC range it runs from a separate remote condensing unit (GMR201), and at 2300 mm deep it doubles the capacity of the single-trolley GC101 behind the same 1300 mm frontage.

Key features:

• Roll-in cell for two 1/1 GN or EN1 (600 x 400) trolleys, trolleys not included
• 160 kg blast chilling (+90°C to +3°C) or 160 kg shock freezing (+90°C to -18°C) per cycle
• SOFT and HARD chilling and freezing cycles, then automatic holding at +3°C or -18°C
• 7 inch full touch display and a heated core temperature probe
• USB port for HACCP records, recipes and firmware updates
• 80 mm CFC and HCFC-free insulation and a 60 mm reinforced floor with a non-slip steel plate
• Fan speed controlled by inverter
• Magnetic door closure that shuts reliably, even in heavy use
• Evaporator mounted inside the cell and raised off the floor, so the floor is easy to clean

Specifications:

• Model: Polaris GC201
• Capacity: 2 x 1/1 GN trolleys
• Blast chilling: 160 kg, +90°C to +3°C
• Shock freezing: 160 kg, +90°C to -18°C
• Dimensions: 1300 W x 2300 D x 2100 H mm
• Internal cell size: 740 x 1840 x 1820 mm
• Door opening: 740 x 1820 mm
• Weight: 880 kg
• Power: 15.9 kW, 400V three phase plus neutral
• Refrigerant: R452A, remote air-cooled condensing unit GMR201 (sold separately)
• Insulation: 80 mm, floor thickness 60 mm
• Origin: Italy
• Packed for delivery: 6.28 m³, 980 kg (supplied disassembled)

Good to know before you buy:

• Not included: the GMR201 remote condensing unit, the R-GCX01 ramp and the trolleys are sold separately.
• Assembly and connection: the cell is supplied disassembled and needs assembling on site. A licensed refrigeration mechanic must run and connect the refrigeration lines, and a licensed electrician must connect the three-phase supply. We supply the equipment only.
• Condensing unit location: the standard remote unit is rated for outside temperatures from -10°C up to 38°C. An enclosed, sound-insulated version (GMR201-CS) is also listed.
• Access: close to a tonne packed, delivered by tailgate truck to the front of your premises. Plan lifting equipment and a clear route in advance.

Compare similar models:

• Polaris GC101: one trolley, 80 kg per cycle, 1250 mm deep
• Polaris GC301: three trolleys, 240 kg per cycle, 3200 mm deep
• Polaris GC401: four trolleys, 320 kg per cycle
• Polaris KC100L: self-contained roll-in unit, 90 kg chilling, no remote condenser

Common questions:

Why is it a remote system?
The GC201 cell holds the evaporator, while the compressor and condenser sit in the separate GMR201 unit. That unit can be placed outside or in a plant room, keeping heat and noise out of the kitchen.

Can it take bakery trolleys?
Yes. Polaris specifies the cell for 1/1 GN or EN1 (600 x 400) trolleys.

Do you install it?
We supply the equipment only. It must be assembled and connected by a licensed refrigeration mechanic and a licensed electrician in your area.

See all our blast chillers.

Warranty: 2 years parts and 2 years labour (24 months each) through Polaris's Australian distributor, Scots Ice. Exclusions apply.
