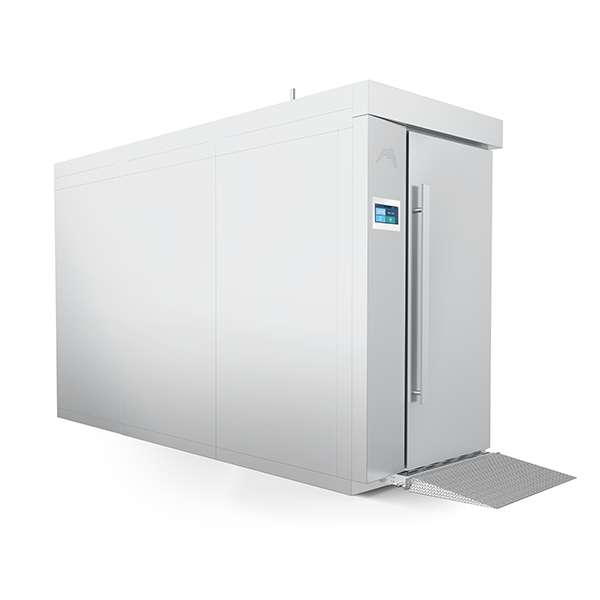

Polaris GC301 - 3 Trolley Remote Roll-In Blast Chiller Freezer 240kg

Polaris GC301 - 3 Trolley Remote Roll-In Blast Chiller Freezer 240kg

The Polaris GC301 is a three-trolley blast chilling and shock freezing cell for high-output food production, such as large banqueting kitchens, institutional catering and ready-meal producers. Three 1/1 GN trolleys roll in one behind the other, and the cell chills or freezes up to 240 kg per cycle. Compared with the GC201 it adds a third trolley bay (3200 mm deep instead of 2300 mm), and like all GC models it runs from a separate remote condensing unit, here the GMR301.

Key features:

• Roll-in capacity for three 1/1 GN or EN1 (600 x 400) trolleys, trolleys sold separately
• Chills 240 kg from +90°C to +3°C, or freezes 240 kg from +90°C to -18°C, per cycle
• SOFT and HARD cycles to suit delicate or dense products, with holding at +3°C or -18°C afterwards
• 7 inch full touch display for quick cycle selection
• Heated core temperature probe, so cycles run to the food's core temperature
• USB port for HACCP data downloads and recipe transfer
• 80 mm CFC and HCFC-free polyurethane insulation, 60 mm reinforced floor with non-slip plate
• Evaporator mounted off the floor inside the cell, for easier cleaning
• Drain plug and a fully accessible front electrical panel

Specifications:

• Model: Polaris GC301
• Capacity: 3 x 1/1 GN trolleys
• Blast chilling: 240 kg, +90°C to +3°C
• Shock freezing: 240 kg, +90°C to -18°C
• Dimensions: 1300 W x 3200 D x 2100 H mm
• Internal cell size: 740 x 2740 x 1820 mm
• Door opening: 740 x 1820 mm
• Weight: 1300 kg
• Power: 23.9 kW, 400V three phase plus neutral
• Refrigerant: R452A, remote air-cooled condensing unit GMR301 (sold separately)
• Insulation: 80 mm, floor thickness 60 mm
• Origin: Italy
• Packed for delivery: 8.74 m³, 1415 kg (supplied disassembled)

Good to know before you buy:

• Not included: the GMR301 condensing unit, the R-GCX01 stainless steel ramp (with drain outlet) and the trolleys. Ask us to price the full setup.
• Assembly and connection: this is a large, site-assembled cell. It needs a licensed refrigeration mechanic for the remote refrigeration lines and a licensed electrician for the three-phase supply. We supply the equipment only.
• Space planning: allow 1300 x 3200 mm of floor plus room in front to manoeuvre trolleys, and a suitable outdoor or plant-room spot for the condensing unit (the standard unit is rated for outside temperatures from -10°C to 38°C).
• Access: 1415 kg packed, delivered by tailgate truck to the front of your premises. Lifting equipment will be needed.

Compare similar models:

• Polaris GC201: two trolleys, 160 kg per cycle
• Polaris GC401: four trolleys, 320 kg per cycle, 4100 mm deep
• Polaris GC101: single trolley, 80 kg per cycle

Common questions:

Does it come with trolleys?
No. Trolleys, the ramp and the remote condensing unit are all sold separately. Ask us about matching trolleys.

Is a pass-through version available?
Yes. Polaris lists a pass-through option for this size. Contact us for details and pricing.

Do you install it?
We supply the equipment only. It must be assembled and connected by a licensed refrigeration mechanic and a licensed electrician in your area.

See all our blast chillers.

Warranty: 2 years parts and 2 years labour (24 months each) through Polaris's Australian distributor, Scots Ice. Exclusions apply.
