Williams Blast Chiller WMBCF240C - 240Kg Roll In Blast Chiller/Freezer Combi Trolley Compatible 1670mm

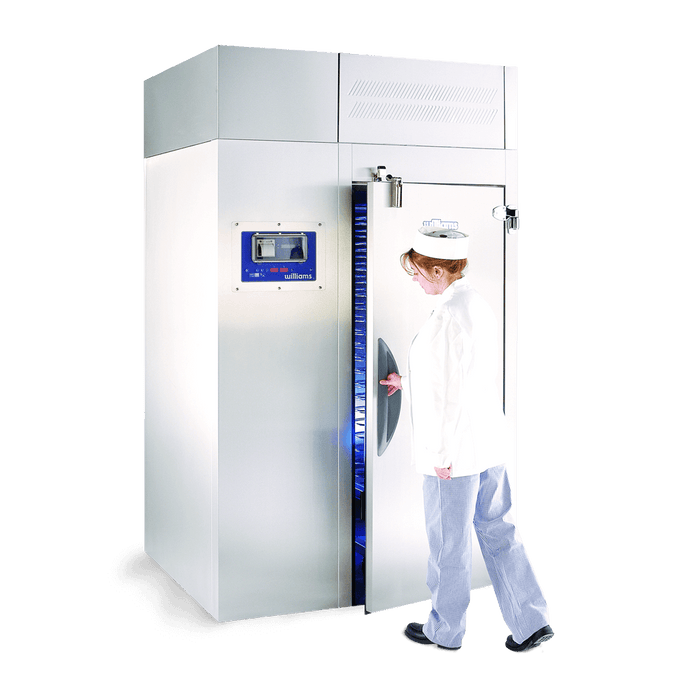

The Williams WMBCF240C is a two-trolley roll-in blast chiller/freezer: load two 1/1 or 2/1 GN combi trolleys into its 2350mm deep chamber and blast chill up to 240 kg of cooked food in 90 minutes, or blast freeze 240 kg in 240 minutes. It is supplied with a 90mm insulated, heated floor for freezer operation, three core probes, a thermal printer for HACCP cycle records and automatic switching to storage mode when the cycle ends. It suits production kitchens that run cook-chill and cook-freeze side by side and need to process more than one trolley per batch. The remote condensing unit (22.5 kW duty) is supplied by your refrigeration mechanic, the WMBC240C is the chill-only twin and the WMBCF320C is the same chamber with a higher rating.
Key features:
- Blast chills up to 240 kg per 90-minute cycle or blast freezes 240 kg per 240-minute cycle
- Takes two loaded 1/1 or 2/1 GN mobile racks or combi oven trolleys through a 900mm wide door opening
- Easy Blast 1-2-3 control panel, three steps to start a chill or freeze cycle
- Three core food temperature probes for accurate control of each batch
- Thermal printer records and prints cycle data for HACCP compliance
- Automatic switch to storage mode at the end of each cycle, with automatic defrost after every cycle or every six hours
- AirSmart airflow design for uniform chilling and freezing across both trolleys
- 90mm insulated and heated floor supplied for freezer operation
- Modular stainless steel panels delivered flat packed; large easy-access fans and evaporator
Specifications:
- Model: Williams WMBCF240C
- Capacity: 240 kg per blast chill cycle (90 minutes) or blast freeze cycle (240 minutes)
- Trolley capacity: 2 x 2/1 GN combi trolleys (1/1 GN racks also fit)
- Dimensions: 1670 W x 2350 D x 2385 H mm, including the 90mm insulated floor
- Weight: 650 kg unpacked
- Door: 1 solid door with 900mm opening; pass-through second door optional
- Finish: stainless steel interior and exterior
- Maximum room temperature: 40°C
- Refrigeration: remote, condensing unit not included; refrigeration duty 22.5 kW at -15°C SST
- Refrigerant: R448A
- Power: 415 V 50 Hz three-phase, 20 amp supply at the control panel, 7.7 A running
- Supplied as: flat-packed modular panels, insulated heated floor and a one-piece evaporator section, for assembly on site
- Capacity rating: based on blast chilling uncovered dense food such as mashed potato, maximum 50mm deep; times vary with the container and type of food
Good to know before you buy:
- Floor recess or ramp: the 90mm heated floor needs a recess of no more than 100mm, or the optional external ramp, so two loaded trolleys can be wheeled in level. Build this into the slab or fit-out plan early.
- Space: 1670mm wide, 2350mm deep and 2385mm high, plus a clear run in front of the door for two trolleys.
- Remote refrigeration: no condensing unit is supplied. Your refrigeration mechanic supplies and installs a unit for 22.5 kW at -15°C SST with pipework and controls. Williams can advise on sizing. We supply the equipment only.
- Power: 415 V three-phase, 20 amp at the control panel, connected by a licensed electrician.
- Installation: delivered flat packed as modular panels with the evaporator section in one piece, for erection on site by your installer. Delivery is by tailgate truck to the front of your premises. Trolleys are not listed in the standard supply.
Compare similar models:
- Williams WMBC240C: chill-only version, 2295mm high, no insulated floor
- Williams WMBCF320C: same two-trolley chamber rated for 320 kg per cycle, 25.7 kW duty
- Williams WMBCF200C: single-trolley chiller/freezer, 200 kg per cycle, 1250mm deep
- Williams WMBF200C: two-trolley freeze-only roll-in, 200 kg per cycle
Common questions:
Can I chill one trolley and freeze the other at the same time?
No. The chamber runs one cycle at a time, either blast chill or blast freeze, for everything inside it. Load it with product that needs the same cycle, or run the two batches one after the other.
Is a condensing unit included?
No. Like every Williams roll-in blast chiller, this is a remote unit. Williams supplies the chamber, floor, evaporator, control panel and printer; the condensing unit, pipework and controls come from your refrigeration mechanic, sized for 22.5 kW at -15°C SST.
Do you install it?
No. We supply the equipment only. The panels are erected on site by your installer, the three-phase supply is connected by a licensed electrician and the refrigeration by a licensed refrigeration mechanic in your area.
See all our blast chillers.
Warranty: Williams 12-month parts-only warranty from the date of invoice, as this remote unit is connected to a separately supplied condensing unit. Warranty repairs must be logged with and authorised by Williams first.
