Williams Blast Chiller WMBF200C - 200Kg Roll In Blast Freezer Combi Trolley Compatible 1670mm

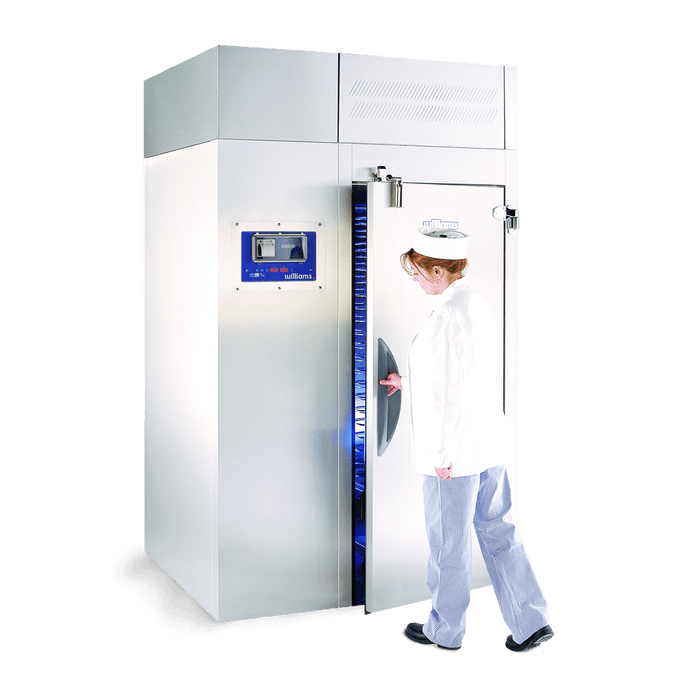

The Williams WMBF200C is a two-trolley roll-in blast freezer: a 2350mm deep chamber that takes two 1/1 or 2/1 GN combi trolleys at once and blast freezes up to 200 kg of cooked food per 240-minute cycle. It is the larger of the two freeze-only Williams roll-ins (the WMBF100C takes one trolley) and suits ready-meal producers, bakeries, central kitchens and caterers who freeze whole production runs. It comes with a 90mm insulated, heated floor, three core probes and a thermal printer for HACCP records. As a remote unit it needs a low-temperature condensing unit rated for 18.2 kW at -30°C SST, supplied and installed by your refrigeration mechanic, and 415 V three-phase power at the control panel.
Key features:
- Blast freezes up to 200 kg of food per 240-minute cycle
- Takes two loaded 1/1 or 2/1 GN mobile racks or combi oven trolleys through a 900mm wide door opening
- Easy Blast 1-2-3 control panel, three steps to start a cycle
- Three core food temperature probes for accurate measurement and control
- Thermal printer stores and prints cycle data for full HACCP compliance
- Automatic switch to storage mode at the end of each cycle, with automatic defrost after every cycle or every six hours
- AirSmart airflow design for uniform freezing across both trolleys
- 90mm insulated and heated floor supplied
- Modular stainless steel panels delivered flat packed, with easy-access fans and evaporator
Specifications:
- Model: Williams WMBF200C
- Capacity: 200 kg per blast freeze cycle (240 minutes)
- Trolley capacity: 2 x 2/1 GN combi trolleys (1/1 GN racks also fit)
- Dimensions: 1670 W x 2350 D x 2385 H mm, including the 90mm insulated floor
- Weight: 650 kg unpacked
- Door: 1 solid door with 900mm opening; pass-through second door optional
- Finish: stainless steel interior and exterior
- Maximum room temperature: 40°C
- Refrigeration: remote, condensing unit not included; refrigeration duty 18.2 kW at -30°C SST
- Refrigerant: R448A
- Power: 415 V 50 Hz three-phase, 20 amp supply at the control panel (data sheet lists 16 or 20 amp), up to 9.0 A running
- Supplied as: flat-packed modular panels, insulated heated floor and a one-piece evaporator section, for assembly on site
- Capacity rating: based on 50mm maximum depth of uncovered dense food such as mashed potato; times vary with the container and type of food
Good to know before you buy:
- Space: at 2350mm deep this chamber is almost twice the depth of the single-trolley models, plus you need room in front of the door to manoeuvre two trolleys. Check the floor plan and ceiling height (2385mm plus clearance) before ordering.
- Remote refrigeration: no condensing unit is supplied. A low-temperature unit for 18.2 kW at -30°C SST is supplied and installed by your refrigeration mechanic, with pipework and controls. Williams can advise on sizing. We supply the equipment only.
- Floor recess or ramp: the 90mm heated floor needs a recess of no more than 100mm, or the optional external ramp, so loaded trolleys roll in level.
- Power: 415 V three-phase at the control panel, connected by a licensed electrician. Confirm the 16 or 20 amp circuit size with Williams.
- Installation: delivered flat packed as modular panels, with the evaporator section in one piece, for erection on site by your installer. Delivery is by tailgate truck to the front of your premises. Trolleys are not listed in the standard supply.
Compare similar models:
- Williams WMBF100C: single-trolley blast freezer, 100 kg per cycle, 1250mm deep
- Williams WMBCF200C: single-trolley chiller/freezer, chills or freezes 200 kg per cycle
- Williams WMBCF240C: two-trolley chiller/freezer, 240 kg per cycle, same 2350mm depth
- Williams WMBCF320C: two-trolley chiller/freezer, 320 kg per cycle
Common questions:
Why is the 200 kg freezer twice as deep as the 200 kg chiller/freezer?
The WMBF200C is designed to freeze two trolleys at once, so the chamber is 2350mm deep to hold them one behind the other. The single-trolley WMBCF200C reaches its 200 kg rating from one trolley in a 1250mm deep chamber. Pick the two-trolley layout if you load two racks per batch.
Can it blast chill as well?
It is sold as a blast freezer. For a two-trolley chamber that both chills and freezes, choose the WMBCF240C or WMBCF320C.
Do you install it?
No. We supply the equipment only. The chamber is assembled on site by your installer, the three-phase supply is connected by a licensed electrician and the refrigeration, including the separately supplied condensing unit, by a licensed refrigeration mechanic in your area.
See all our blast chillers.
Warranty: Williams 12-month parts-only warranty from the date of invoice, as this remote unit is connected to a separately supplied condensing unit. Warranty repairs must be logged with and authorised by Williams first.
