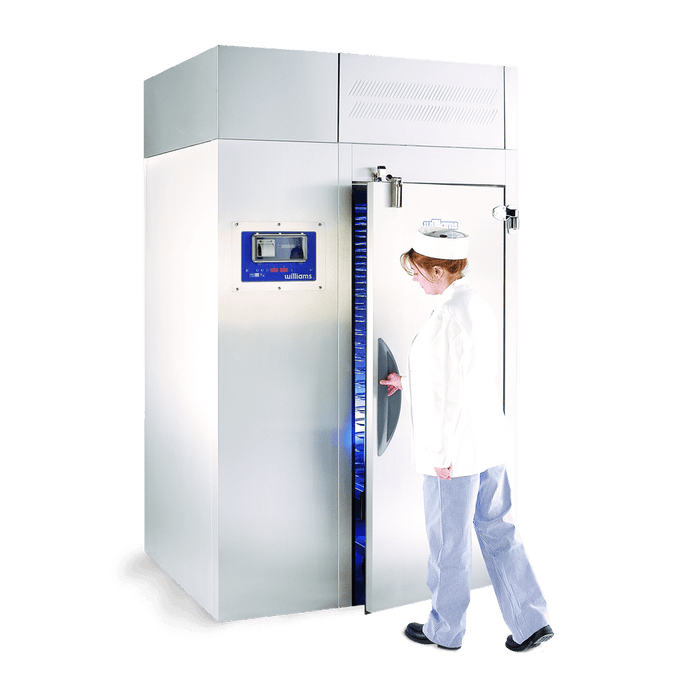

Williams Blast Chiller WMBF100C - 100Kg Roll In Blast Freezer Combi Trolley Compatible 1670mm
- Australia-wide delivery, usually 2–5 business days to Sydney, Melbourne, Brisbane and Adelaide. Delivery info
- Price-Beat Guarantee. Found it cheaper? Send us the link
- Manufacturer’s warranty on every product
- Tax invoice with our ABN for every order
- Secure checkout
Silver Chef Rent-Try-Buy from $481.28 ex GST ($529.41 inc GST) per week over 12 monthsApply nowHow it works
Estimate only. Finance provided by Silver Chef, subject to approval.
Williams Blast Chiller WMBF100C - 100Kg Roll In Blast Freezer Combi Trolley Compatible 1670mm
The Williams WMBF100C is a dedicated roll-in blast freezer, rated to blast freeze up to 100 kg of cooked food per 240-minute cycle from a single 1/1 or 2/1 GN combi trolley. Rapid freezing straight after cooking is the freezer side of cook-chill food safety, so it suits production kitchens, bakeries, ready-meal and sous vide operations and caterers who freeze whole batches rather than chill them. It comes with a 90mm insulated, heated floor, a thermal printer for HACCP records and three core probes. Being a remote unit, the condensing unit is supplied and installed separately by your refrigeration mechanic and must be sized for a 12.2 kW duty at -30°C SST, and for a chamber that both chills and freezes, see the WMBCF90C or WMBCF120C.
Key features:
- Blast freezes up to 100 kg of food per 240-minute cycle
- 900mm wide door opening takes one loaded 1/1 or 2/1 GN mobile rack or combi oven trolley
- Easy Blast 1-2-3 control panel, three steps to start a cycle
- Three core food temperature probes for accurate measurement and control
- Thermal printer stores and prints cycle data for full HACCP compliance
- Automatic switch to storage mode at the end of each cycle, with automatic defrost after every cycle or every six hours
- AirSmart airflow design for uniform freezing across the whole trolley
- 90mm insulated and heated floor supplied
- Modular stainless steel panels delivered flat packed, with easy-access fans and evaporator
Specifications:
- Model: Williams WMBF100C
- Capacity: 100 kg per blast freeze cycle (240 minutes)
- Trolley capacity: 1 x 2/1 GN combi trolley (1/1 GN racks also fit)
- Dimensions: 1670 W x 1250 D x 2385 H mm, including the 90mm insulated floor
- Weight: 650 kg unpacked
- Door: 1 solid door with 900mm opening; pass-through second door optional
- Finish: stainless steel interior and exterior
- Maximum room temperature: 40°C
- Refrigeration: remote, condensing unit not included; refrigeration duty 12.2 kW at -30°C SST
- Refrigerant: R448A
- Power: 415 V 50 Hz three-phase, 16 amp supply at the control panel, 5.0 A running
- Supplied as: flat-packed modular panels, insulated heated floor and a one-piece evaporator section, for assembly on site
- Capacity rating: based on 50mm maximum depth of uncovered dense food such as mashed potato; times vary with the container and type of food
Good to know before you buy:
- Remote refrigeration: no condensing unit is supplied. Because this is a freezer, the condensing unit must be sized for low-temperature duty (12.2 kW at -30°C SST). Your refrigeration mechanic supplies and installs it, and Williams can recommend sizing. We supply the equipment only.
- Floor recess or ramp: the 90mm heated floor needs a recess of no more than 100mm, or the optional external ramp, so a loaded trolley can roll in.
- Installation: the chamber is delivered flat packed as modular panels and erected on site by your installer. The evaporator section comes in one piece and needs safe handling. Delivery is by tailgate truck to the front of your premises.
- Power: 415 V three-phase at the control panel, connected by a licensed electrician.
- Trolley: not listed in the standard supply. Use your own 1/1 or 2/1 GN trolley or rack.
Compare similar models:
- Williams WMBF200C: two-trolley blast freezer, 200 kg per cycle, 2350mm deep
- Williams WMBCF90C: chills or freezes 90 kg per cycle in the same size chamber
- Williams WMBCF120C: chills or freezes 120 kg per cycle in the same size chamber
- Williams WMBC90C: chill-only roll-in, 90 kg per cycle, no insulated floor
Common questions:
Can the WMBF100C blast chill as well as freeze?
It is sold as a blast freezer, rated for 100 kg per 240-minute freeze cycle. If you want both chill and freeze cycles in one chamber, choose a chiller/freezer model such as the WMBCF90C or WMBCF120C.
What does "12.2 kW at -30°C SST" mean for my refrigeration mechanic?
It is the refrigeration duty the remote condensing unit must deliver at a -30°C saturated suction temperature. Your mechanic uses it to select a low-temperature condensing unit; Williams can also advise on sizing.
Do you install it?
No. We supply the equipment only. Assembly of the panels is by your installer, the three-phase connection by a licensed electrician and the refrigeration by a licensed refrigeration mechanic in your area.
See all our blast chillers.
Warranty: Williams 12-month parts-only warranty from the date of invoice, as this remote unit is connected to a separately supplied condensing unit. Warranty repairs must be logged with and authorised by Williams first.
