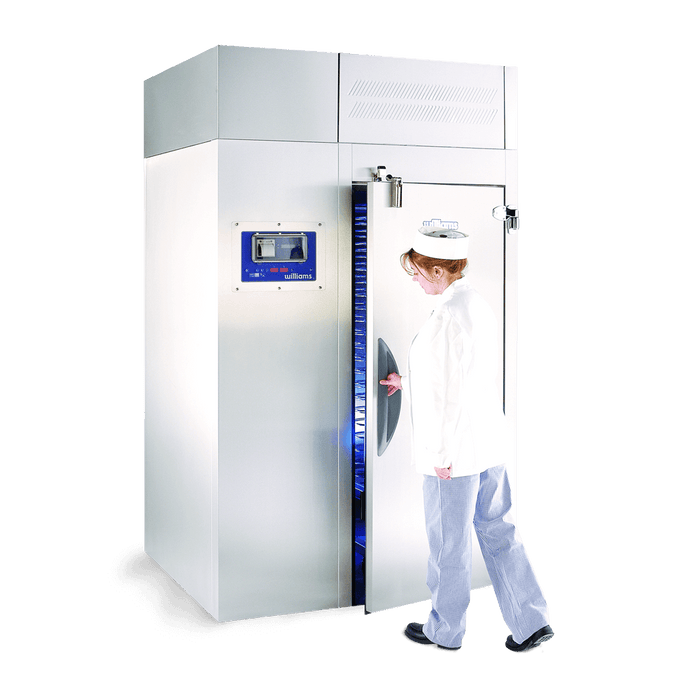

Williams Blast Chiller WMBC90C - 90Kg Roll In Blast Chiller Combi Trolley Compatible 1670mm
The Williams WMBC90C is the smallest of the Williams roll-in blast chillers: a modular, walk-in style chamber with a 900mm door opening that takes a loaded 1/1 or 2/1 GN combi oven trolley straight from the oven and blast chills up to 90 kg of cooked food per 90-minute cycle. Fast chilling takes food through the danger zone in a controlled, recorded way, and the built-in thermal printer gives you the HACCP paperwork. It is a remote model: Williams supplies the insulated chamber, evaporator, control panel and printer, and your refrigeration mechanic supplies and installs a matching condensing unit. It suits central production kitchens, hospitals, aged care and large caterers running cook-chill. If you also need to blast freeze, the WMBCF90C adds a freeze cycle and an insulated, heated floor.
Key features:
- Blast chills up to 90 kg of cooked food per 90-minute cycle
- 900mm wide door opening takes one loaded 1/1 or 2/1 GN mobile rack or combi oven trolley
- Easy Blast 1-2-3 control panel: three simple steps to start a cycle
- Three core food temperature probes for accurate measurement and control
- Thermal printer stores and prints cycle data for full HACCP compliance
- Automatic defrost at the end of every blast cycle, or every six hours
- Switches to storage mode automatically when the cycle ends, so chilled food can be held
- Williams AirSmart airflow design chills evenly without drying the product out
- Large, energy-efficient high-velocity fans and a large evaporator with easy access for cleaning
- Modular stainless steel panels, delivered flat packed for fast installation and servicing
- Rated for 40°C ambient
Specifications:
- Model: Williams WMBC90C
- Capacity: 90 kg per blast chill cycle (90 minutes)
- Trolley capacity: 1 x 2/1 GN combi trolley (1/1 GN racks also fit)
- Dimensions: 1670 W x 1250 D x 2295 H mm
- Weight: 650 kg unpacked
- Door: 1 solid door with 900mm opening; pass-through second door available as an option
- Finish: stainless steel interior and exterior
- Maximum room temperature: 40°C
- Refrigeration: remote, condensing unit not included; refrigeration duty 8.6 kW at -15°C SST
- Refrigerant: R448A
- Power: 415 V 50 Hz three-phase, 16 amp supply at the control panel, 4.3 A running
- Supplied as: flat-packed modular panels plus a one-piece evaporator section, for assembly on site
- Capacity rating: based on blast chilling uncovered dense food such as mashed potato, maximum 50mm deep; times vary with the container and type of food
Good to know before you buy:
- Remote refrigeration: no condensing unit is supplied. Your refrigeration mechanic sizes, supplies and installs the condensing unit, pipework and controls to suit the 8.6 kW duty. Williams can recommend condensing unit sizing and electrical requirements on request. We supply the equipment only.
- Installation: the chamber arrives as flat-packed modular panels and is erected on site by your installer. The evaporator section comes in one piece and needs safe handling, so plan the route in. Delivery is by tailgate truck to the front of your premises.
- Power: 415 V three-phase at the control panel, connected by a licensed electrician.
- Floor: the chiller-only WMBC90C is not supplied with the 90mm insulated floor used on the freezer and chiller/freezer models, so trolleys roll in at floor level without a recess.
- Trolley: a GN trolley is not listed in the standard supply, so plan to use your existing combi oven trolley or 1/1 or 2/1 GN mobile rack.
Compare similar models:
- Williams WMBCF90C: same 90 kg chamber with blast freeze as well as chill, 2385mm high with insulated floor
- Williams WMBC120C: same size chamber rated for 120 kg per cycle
- Williams WMBF100C: dedicated roll-in blast freezer, 100 kg per cycle
- Williams WBCF50: self-contained reach-in blast chiller freezer, 50 kg per cycle, 13 trays
Common questions:
Is the condensing unit included?
No. The WMBC90C is a remote unit. Williams supplies the chamber, evaporator, control panel and printer; the condensing unit, pipework and controls are supplied and fitted by your refrigeration mechanic. Williams rates the duty at 8.6 kW at -15°C SST and can advise on sizing.
Will my combi oven trolley fit?
The door opening is 900mm wide and the chamber takes one 1/1 or 2/1 GN mobile rack or combi trolley, so a standard combi oven trolley rolls straight in. Check your trolley is no taller than the opening allows and fits within the 1250mm internal depth.
Do you install it?
No. We supply the equipment only. The panels are assembled on site by your installer, the power is connected by a licensed electrician and the refrigeration by a licensed refrigeration mechanic in your area.
See all our blast chillers.
Warranty: Williams 12-month parts-only warranty from the date of invoice, as this remote unit is connected to a separately supplied condensing unit. Warranty repairs must be logged with and authorised by Williams first.
