Williams Blast Chiller WMBCF90C - 90Kg Roll In Blast Chiller/Freezer Combi Trolley Compatible 1670mm
- Australia-wide delivery, usually 2–5 business days to Sydney, Melbourne, Brisbane and Adelaide. Delivery info
- Price-Beat Guarantee. Found it cheaper? Send us the link
- Manufacturer’s warranty on every product
- Tax invoice with our ABN for every order
- Secure checkout
Silver Chef Rent-Try-Buy from $466.05 ex GST ($512.66 inc GST) per week over 12 monthsApply nowHow it works
Estimate only. Finance provided by Silver Chef, subject to approval.

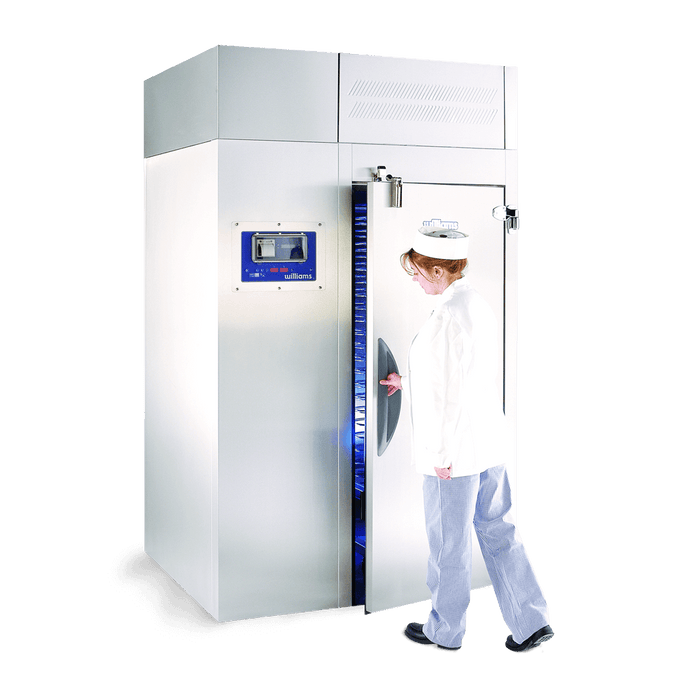

Williams Blast Chiller WMBCF90C - 90Kg Roll In Blast Chiller/Freezer Combi Trolley Compatible 1670mm
Where the WMBC90C only chills, the Williams WMBCF90C does both jobs: it blast chills up to 90 kg of cooked food per 90-minute cycle or blast freezes 90 kg per 240-minute cycle, in a roll-in chamber that takes a complete 1/1 or 2/1 GN combi trolley through its 900mm door. Because it runs down to freezer temperatures it is supplied with a 90mm insulated, heated floor, which is why it stands 2385mm high rather than 2295mm. Cycle data goes to a thermal printer for HACCP records, and the chamber switches to storage mode when the cycle finishes. It is a remote unit, with the condensing unit supplied separately by your refrigeration mechanic, and it is the entry point to the Williams roll-in chiller/freezer range, which goes up to 320 kg.
Key features:
- Blast chills up to 90 kg per 90-minute cycle or blast freezes 90 kg per 240-minute cycle
- 900mm wide door opening for one loaded 1/1 or 2/1 GN mobile rack or combi oven trolley
- Easy Blast 1-2-3 control panel, three steps to start a chill or freeze cycle
- Three core food temperature probes for accurate control of each batch
- Thermal printer records and prints cycle data for HACCP compliance
- Automatic switch to storage mode at the end of each cycle, with automatic defrost after every cycle or every six hours
- AirSmart airflow design for uniform chilling and freezing without product dehydration
- 90mm insulated and heated floor supplied for freezer operation
- Modular stainless steel panels delivered flat packed; large easy-access fans and evaporator for servicing
Specifications:
- Model: Williams WMBCF90C
- Capacity: 90 kg per blast chill cycle (90 minutes) or blast freeze cycle (240 minutes)
- Trolley capacity: 1 x 2/1 GN combi trolley (1/1 GN racks also fit)
- Dimensions: 1670 W x 1250 D x 2385 H mm, including the 90mm insulated floor
- Weight: 650 kg unpacked
- Door: 1 solid door with 900mm opening; pass-through second door optional
- Finish: stainless steel interior and exterior
- Maximum room temperature: 40°C
- Refrigeration: remote, condensing unit not included; refrigeration duty 8.6 kW at -15°C SST
- Refrigerant: R448A
- Power: 415 V 50 Hz three-phase, 16 amp supply at the control panel, 4.3 A running
- Supplied as: flat-packed modular panels, insulated heated floor and a one-piece evaporator section, for assembly on site
- Capacity rating: based on blast chilling uncovered dense food such as mashed potato, maximum 50mm deep; times vary with the container and type of food
Good to know before you buy:
- Floor recess or ramp: the 90mm insulated, heated floor needs a floor recess of no more than 100mm so trolleys can roll in level, or Williams offers an optional external ramp. Decide this at the design stage.
- Remote refrigeration: the condensing unit is not included. Your refrigeration mechanic supplies and installs a condensing unit, pipework and controls to suit the 8.6 kW duty; Williams can advise on sizing. We supply the equipment only.
- Installation: delivered flat packed as modular panels, with the evaporator section in one piece, for erection on site by your installer. Delivery is by tailgate truck to the front of your premises.
- Power: 415 V three-phase at the control panel, connected by a licensed electrician.
- Trolley: not listed in the standard supply; use your own 1/1 or 2/1 GN combi trolley or mobile rack.
Compare similar models:
- Williams WMBC90C: chill-only version of the same chamber, 2295mm high, no insulated floor
- Williams WMBCF120C: same size chiller/freezer rated for 120 kg per cycle
- Williams WMBF100C: freeze-only roll-in, 100 kg per cycle
- Williams WMBCF160C: 160 kg chiller/freezer, same footprint, 17.3 kW duty
Common questions:
What is the difference between the WMBC90C and the WMBCF90C?
The WMBC90C only blast chills. The WMBCF90C blast chills or blast freezes, and comes with a 90mm insulated, heated floor for freezer operation, which adds 90mm to the height and needs a recess or ramp.
Does it arrive assembled?
No. The chamber is made from modular panels that are delivered flat packed and erected on site by your installer. The evaporator section is supplied in one piece and needs safe handling.
Do you install it?
We supply the equipment only. Assembly is by your installer, the three-phase power by a licensed electrician and the refrigeration, including the separately supplied condensing unit, by a licensed refrigeration mechanic in your area.
See all our blast chillers.
Warranty: Williams 12-month parts-only warranty from the date of invoice, as this remote unit is connected to a separately supplied condensing unit. Warranty repairs must be logged with and authorised by Williams first.
