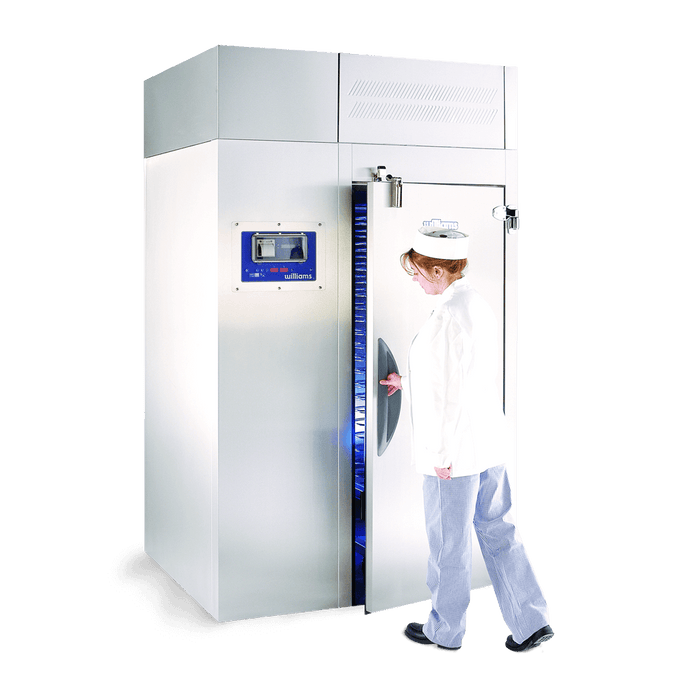

Williams Blast Chiller WMBC160C - 160Kg Roll In Blast Chiller Combi Trolley Compatible 1670mm

Williams Blast Chiller WMBC160C - 160Kg Roll In Blast Chiller Combi Trolley Compatible 1670mm

The Williams WMBC160C is a single-trolley roll-in blast chiller rated for 160 kg of cooked food per 90-minute cycle, which puts it in the territory of large hospital, defence, prison and contract catering kitchens that chill full 2/1 GN combi trolley loads several times a day. The 900mm door opening takes the trolley straight from the oven, three core probes monitor the food, and the thermal printer prints the cycle record for HACCP. It needs a 17.3 kW remote condensing unit, supplied and installed by your refrigeration mechanic, and a 16 amp three-phase supply at the control panel. It is the chill-only unit; the WMBCF160C adds blast freezing and an insulated floor.

Key features:

• Blast chills up to 160 kg of cooked food per 90-minute cycle
• 900mm wide door opening takes one loaded 1/1 or 2/1 GN mobile rack or combi oven trolley
• Easy Blast 1-2-3 control panel, three steps to start a cycle
• Three core food temperature probes for accurate measurement and control
• Thermal printer stores and prints cycle data for full HACCP compliance
• Automatic defrost at the end of every blast cycle or every six hours
• Automatic switch to storage mode at the end of each cycle
• AirSmart airflow design for even chilling without product dehydration
• Modular stainless steel panels delivered flat packed for fast installation and servicing

Specifications:

• Model: Williams WMBC160C
• Capacity: 160 kg per blast chill cycle (90 minutes)
• Trolley capacity: 1 x 2/1 GN combi trolley (1/1 GN racks also fit)
• Dimensions: 1670 W x 1250 D x 2295 H mm
• Weight: 650 kg unpacked
• Door: 1 solid door with 900mm opening; pass-through second door optional
• Finish: stainless steel interior and exterior
• Maximum room temperature: 40°C
• Refrigeration: remote, condensing unit not included; refrigeration duty 17.3 kW at -15°C SST
• Refrigerant: R448A
• Power: 415 V 50 Hz three-phase, 16 amp supply at the control panel, 5.2 A running
• Supplied as: flat-packed modular panels plus a one-piece evaporator section, for assembly on site
• Capacity rating: based on blast chilling uncovered dense food such as mashed potato, maximum 50mm deep; times vary with the container and type of food

Good to know before you buy:

• Remote refrigeration: the 17.3 kW condensing unit is not included. It is supplied and installed, with pipework and controls, by your refrigeration mechanic. Williams can recommend condensing unit sizing and electrical requirements. We supply the equipment only.
• Installation: the chamber arrives as flat-packed modular panels for erection on site by your installer. The evaporator section comes in one piece and needs safe handling. Delivery is by tailgate truck to the front of your premises.
• Power: 415 V three-phase at the control panel, 16 amp, connected by a licensed electrician.
• Floor: no insulated floor is supplied on this chill-only model, so trolleys roll in at floor level without a recess.
• Trolley: not listed in the standard supply; use your existing 1/1 or 2/1 GN combi trolley or mobile rack.

Compare similar models:

• Williams WMBCF160C: same 160 kg chamber with blast freezing and an insulated floor, 2385mm high
• Williams WMBC120C: same chamber rated for 120 kg per cycle, 10.3 kW duty
• Williams WMBC200C: same chamber rated for 200 kg per cycle, 21.0 kW duty
• Williams WMBC240C: two-trolley chamber, 240 kg per cycle, 2350mm deep

Common questions:

How big is the door and the chamber?
The door opening is 900mm wide and the chamber measures 1670mm wide by 1250mm deep by 2295mm high overall. It is sized for one 1/1 or 2/1 GN mobile rack or combi oven trolley. If you need two trolleys per cycle, look at the 2350mm deep WMBC240C or WMBC320C.

Can I have doors on both sides?
A pass-through second door is available as an option, so trolleys can enter from the cookline and leave on the packing side. Ask us for a price.

Do you install it?
No. We supply the equipment only. Assembly on site is by your installer, the three-phase power by a licensed electrician and the refrigeration by a licensed refrigeration mechanic in your area.

See all our blast chillers.

Warranty: Williams 12-month parts-only warranty from the date of invoice, as this remote unit is connected to a separately supplied condensing unit. Warranty repairs must be logged with and authorised by Williams first.
